LZY has compiled 6 questions that users are most concerned about and provided answers to each one:

1: Can the cement surface be engraved deeply and clearly with such roughness?

Can. The key is power.

Cement has high hardness and requires sufficient laser energy to produce clear and durable markings.

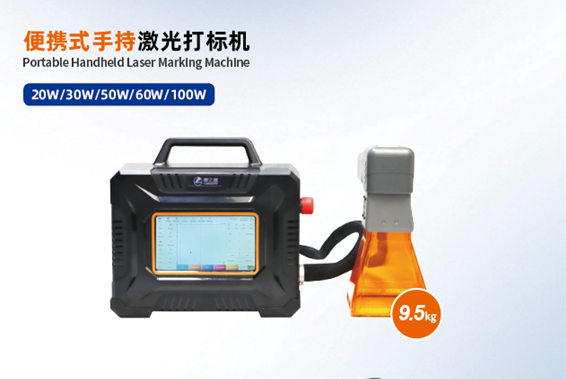

The LZY portable laser marking machine provides a full power range of 20W-100W, especially with a high-end configuration of 60W/100W, which is currently one of the few high-power portable models on the market. The carving depth can be adjusted from 0.05mm to 3mm, and both fine small characters and dark QR codes can be molded in one go.

2: The construction site is out of power, can it be used?

Can. Built in 14.5Ah high-capacity lithium battery.

This is the first pain point for many construction site users. Our machine is equipped with a 14.5Ah lithium battery, which has a larger capacity than the mainstream 12Ah battery on the market. It can work continuously for 4-6 hours when fully charged, enough to cover a day's marking needs.

What's even more considerate is that it supports marking while charging. Plug it in during lunch break and it can be fully charged in 1.5 hours without delaying afternoon operations.

3: Are workers not highly educated and have complex operations?

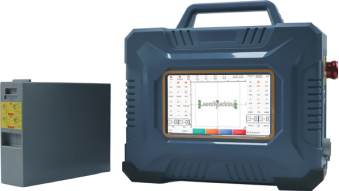

Not complicated. 7-inch touchscreen+user-friendly interface.

Our self-developed Linux system follows the principle of "minimalism" in interface design - it can be started in three steps: booting up, selecting templates, and aligning and pressing.

7-inch high-definition capacitive screen, sensitive touch control, and rich pre set marking templates in the system. Workers do not need to understand programming, they can simply click on the screen to adjust it.

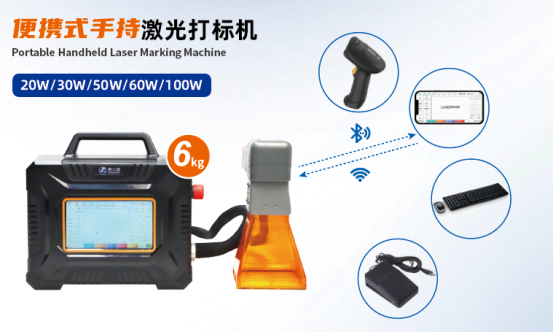

4: Can it connect to the enterprise system? How to transmit data?

Can. Support secondary development and interface with MES/ERP/PLC.

This is not an isolated device. Our software system has an open secondary development interface, which can seamlessly integrate with the production management system of enterprises.

For example, on a pipe pile production line, a barcode scanner scans the bill of materials, and the machine automatically retrieves the model, date, and furnace number of the pile and starts marking it. The data is automatically returned after completion. The digital traceability of "one item, one code" is as simple as that.

It also supports remote control through mobile apps, freeing itself from the constraints of computers.

5: Is the machine durable in construction sites with high levels of dust and vibration?

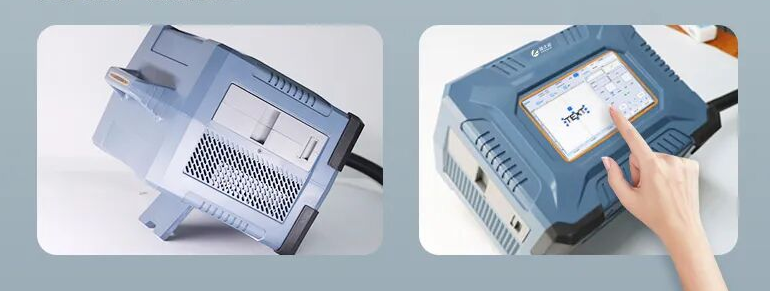

Durable. Full protection design+military grade heat dissipation.

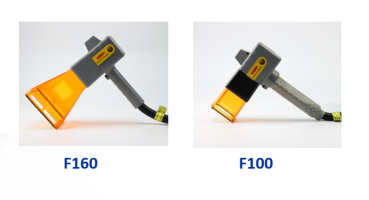

Safety is the first red line. Our javelin thrower head adopts a fully protected design, effectively blocking laser scattering and complying with the EU CE safety standards.

The internal structure is neat, the air cooling heat dissipation efficiency is high, and with more than 20 years of technical accumulation in the field of laser power supply, the stability of the whole machine is extremely strong, and it can work stably for a long time in dust and vibration environments on construction sites.

6: What is the range that can be carved? Can both big and small characters be engraved?

Can. Standard configuration is 100 × 100mm, with optional options of 50 × 50 and 150 × 150mm.

The standard marking format is 100 × 100mm, which can cover the vast majority of marking needs. If you need finer small fonts, you can choose 50 × 50mm; if you need larger logos or numbers, you can choose 150 × 150mm, which can flexibly adapt to different scenarios.
