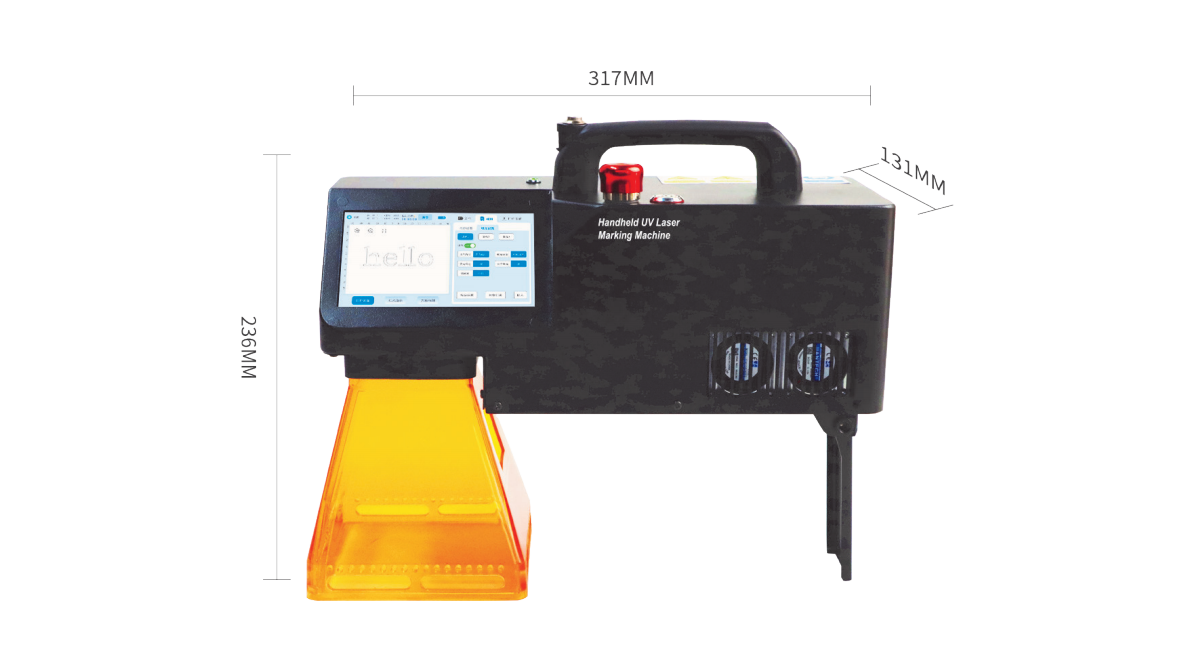

The whole machine weighs only 4kg, with a compact design and easy portability, suitable for high-end markets such as ultra-fine machining, fine cutting, and microfabrication.
355nm ultraviolet laser with extremely small spot size, small heat affected zone, high electro-optical conversion efficiency, suitable for metal and various non-metallic materials.
Supports charging and discharging at the same time, meeting the needs of long-term continuous operation, stable and reliable, and can be optionally equipped with lithium batteries.
Equipped with an 8-core high-performance processor, running our self-developed Linux system, with fast response and simple operation.
Support customization of multiple language systems including Chinese, English, Russian, German, French, Japanese, Korean, Spanish, Portuguese, Arabic, etc.

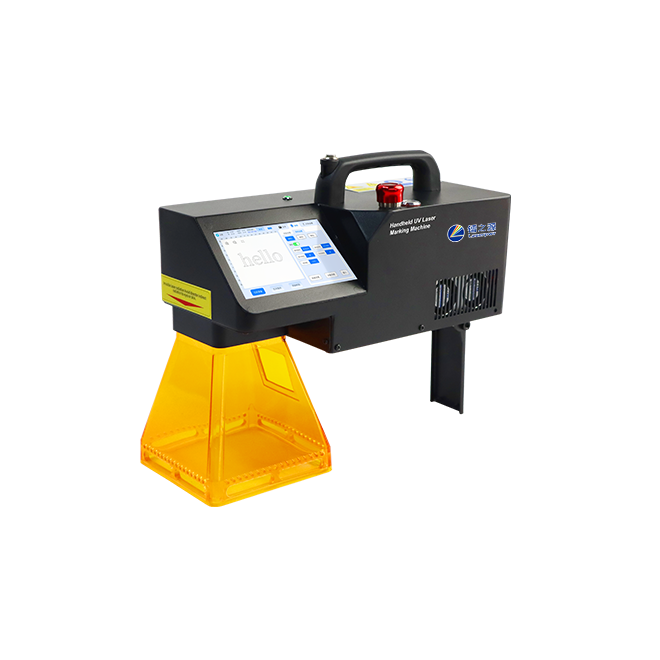

4kg compact UV laser machine, portable, ideal for ultra-fine machining, fine cutting, and microfabrication
355nm UV laser, ultra-small spot, minimal HAZ, excellent beam quality, ideal for fine processing of metals and non-metals.
Supports power-on-the-go, long continuous operation, stable and reliable (Li-ion battery optional).
| Specification | Parameter |
|---|---|
| Laser Source | 355nm UV laser |
| Power | 5W |
| Electrical Power | ≤200W |
| Laser Wavelength | 355nm |
| Marking Range | 80×80mm |
| Engraving Depth | Approx. 0.01–0.4mm (depends on material) |
| Operating System | Linux |
| Repeatability | ±0.002 |
| Power Supply | 23-25V |
| Operating Temperature | 0℃ -30℃ |
| Cooling System | Air cooling |
| Operating System | Linux System |
| Control Interface | Standard USB |
| File Formats | BMP, JPG, PNG, DXF, SVG, PLT and multiple image/text formats, TXT, EXCEL, etc. |
| Marking Types | Text, QR codes, vector graphics, date/number sequences, bitmap images, geometric shapes (combinable & editable). Supports freehand drawing, spiral curves, Lissajous curves. |
| System Languages | Chinese, English, Japanese, Russian, Italian, Spanish, Portuguese, Traditional Chinese, Korean, French, Arabic, German, Polish, Czech, Thai, etc. |
Warranty: 360 days
▶ The warranty period for power products is 12 months, calculated from the date of purchase.
▶ During the warranty period, faults that are not caused by human factors can be repaired free of charge; Malfunctions caused by human damage or excessive use require paid repairs.
▶ Before using this power supply, please read the manual carefully. We are not responsible for any damage or problems caused by improper use or failure to follow the manual
Widely used in:

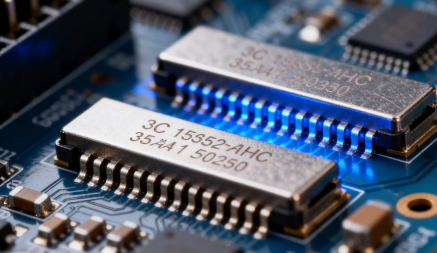

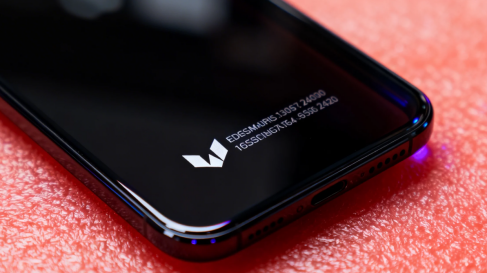

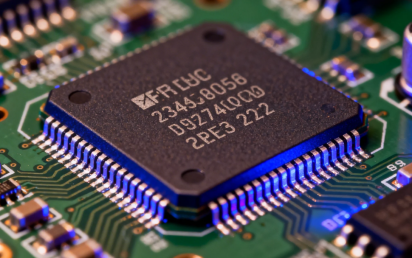

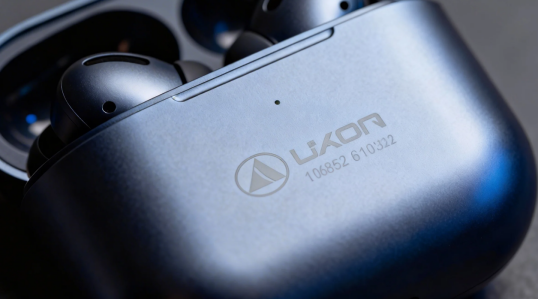

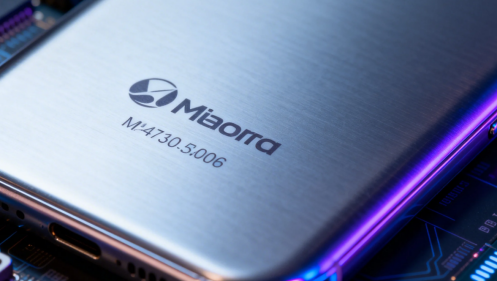

▶ 3C & precision parts – phone cases, chips, PCBs, USB ports, battery covers.

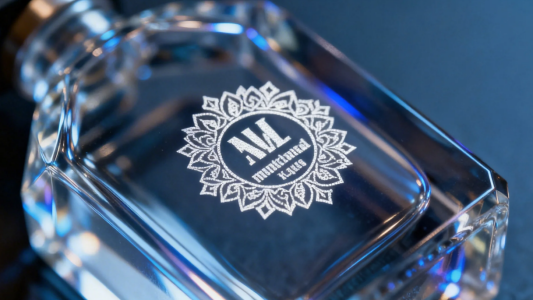

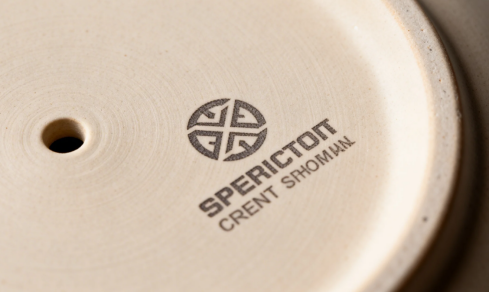

▶ Glass & crafts.

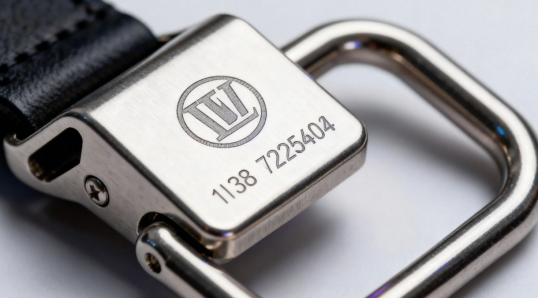

▶ Metal products – nameplates, bracelets, tools, auto interior parts.
▶ Packaging & consumer goods – cosmetics, gift boxes, food packaging (tea, caviar, alcohol).
▶ Industrial lines – cable marking, auto components, ID plates.
