In scientific research, medical, and high-end manufacturing, the performance of a short-arc xenon lamp power supply directly determines equipment stability and output quality. As the "heart" of your system, a top-tier power supply must deliver not only robust power but also uncompromising safety and reliability.

As a specialist in laser power supplies, LZYoffers two premium xenon lamp power supply series: the HCXO Built-in Short-Arc Xenon Power Supply and the LCX Precision Short-Arc Continuous Xenon Power Supply. Built with integrated design, multiple hardware protections, and universal wide-voltage input, they help you find the perfect match for your application.

Whether you need a highly integrated, cost-effective, plug-and-play xenon power module, or a high-stability solution for high-power research, medical aesthetics, or precision processng with real-time monitoring — the following analysis will guide you to the best decision.

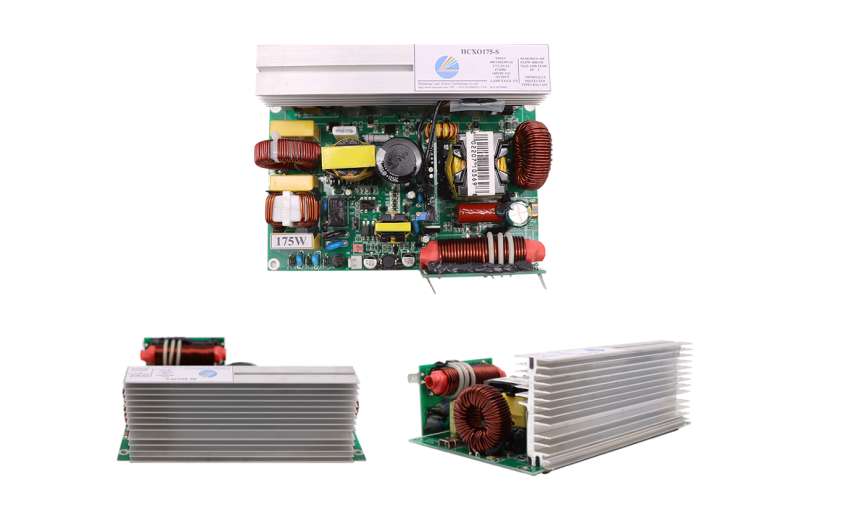

I. HCXO Series – Built-in Short-Arc Xenon Power Supply

We understand industrial users' strict demands for equipment stability and space efficiency. The HCXO series is purpose-built to overcome the common pitfalls of bulky, unstable, and damage-prone traditional power supplies.

1. Flexible Control, Your Way

Remote/Auto Mode One-Touch Switch:

Easily toggle between "Remote Control (external start/stop via switch)" and "Auto Mode (power-on startup)" using the included jumper settings.

Wide Current Adjustment:

Supports 7–16A (175W) and 11–25A (300W) adjustment ranges, accommodating various xenon lamp power requirements.

2. Global Voltage Compatibility for Stable Operation

Equipped with advanced Active Power Factor Correction (PFC) technology, the input voltage range covers AC 88V–265V. Whether you're in regions with unstable grids or overseas, the device starts reliably with a power factor >0.90, effectively reducing harmonic interference.

3. Triple Safety Protections for Complete Peace of Mind

Built-in short-circuit, over-temperature, and overload protections ensure the power supply remains safe even under harsh conditions, supporting 24/7 uninterrupted operation.

4. Integrated Design – Zero Wiring Hassle

The constant-current module and igniter module are highly integrated, with output ports directly connecting to the xenon lamp - no complex additional wiring required. This simplifies installation, reduces failure points, and enhances overall system reliability.

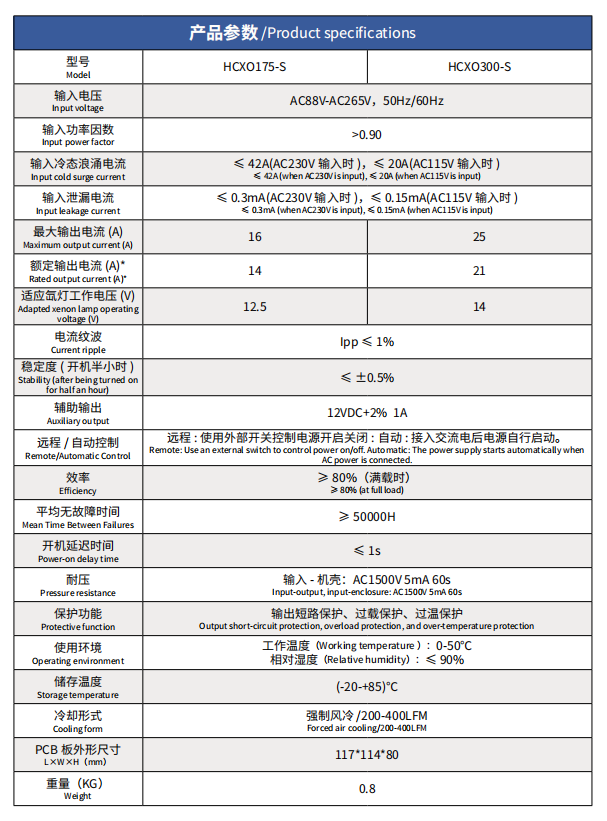

5. Key Specifications at a Glance

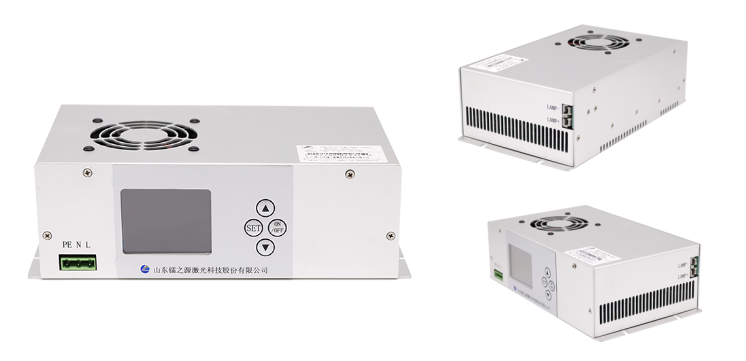

II. LCX Series -Precision Short-Arc Continuous Xenon Power Supply

1. Interleaved PFC Technology

The LCX series adopts advanced interleaved PFC technology, significantly enhancing adaptability to a wide input voltage range (90–265 VAC).

2. Real-Time Monitoring – What You See Is What You Get

2.8-inch Dot-Matrix LCD Display with keypad input allows real-time display of voltage and current values.

Visual Operation: Start-up status and current levels are clearly shown.

Precise Tuning: Prevents lamp damage from excessive current or ignition failure due to insufficient current.

3. Exceptional Stability Data

Ultra-High Stability: <0.1% current stability after 30 minutes of operation.

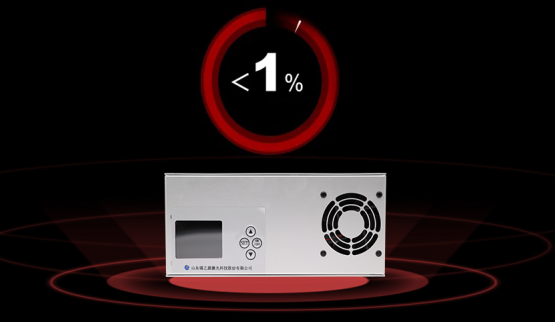

Low Ripple Output: Current ripple <1%, ensuring uniform xenon lamp emission for demanding applications like spectral analysis and precision medical equipment.

4. Comprehensive Protection Mechanisms

Includes output over-current, overload, and open-circuit protection. When the xenon lamp ages or wiring becomes disconnected, the power supply automatically cuts output and triggers an alarm — preventing high voltage from damaging other sensitive circuits and protecting your critical assets.

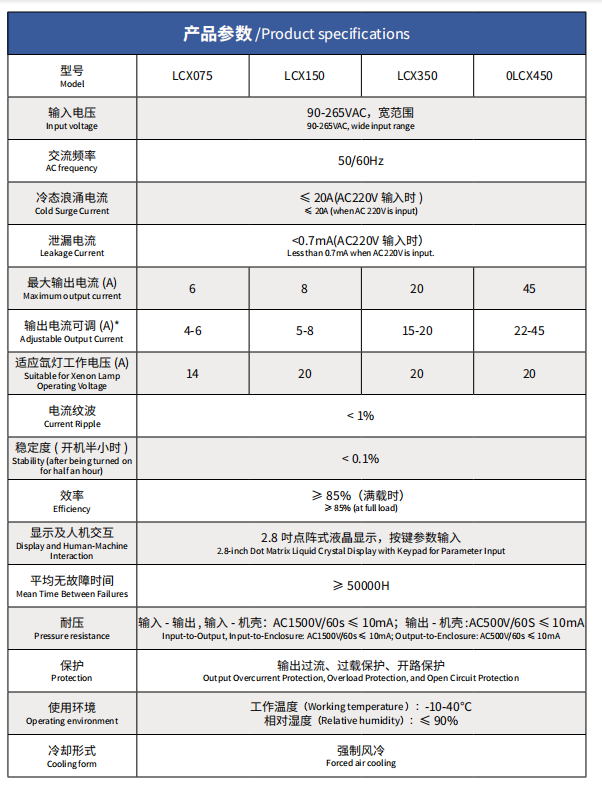

5. Key Specifications at a Glance

III. Selection Guide

If You Are an [Industrial Equipment Integrator] → Choose HCXO Series

Pain Points: Compact internal space, fast installation required, cost control is critical.

Solution:

The HCXO features a compact integrated design (only 171×114×80mm), connecting directly to the lamp without an external igniter. Its simple remote/auto switching (via jumper) makes it an ideal OEM power supply for integration into cabinets.

Key Advantages: High integration, simple wiring, excellent cost-performance.

If You Are in [Research / Medical / High-End Manufacturing] → Choose LCX Series

Pain Points: Extremely high beam quality requirements, need for real-time parameter monitoring, and frequent adjustments.

Solution:

The LCX series comes with a real-time digital display for data visualization. With interleaved PFC technology and <0.1% stability, it functions more like a "precision instrument" — perfect for applications demanding ultimate stability.

Key Advantages: Real-time monitoring, ultra-high stability, convenient operation.

Whether you need high integration or ultimate stability for your xenon lamp power supply, LZY delivers complete laser power solutions tailored to your needs. Follow us to get the detailed selection catalog!

Contact us today for more information or customized solutions.
